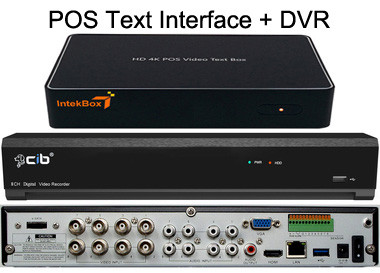

POS 16CH HD 5MP DVR plus POS HD 4K Smart Text Inserter Interface Coax Analog Camera Solution

This is a POS 16CH 5M Full HD-TVI/AHD/CVI/IP professional DVR System, plus IntekBox Smart Text Inserter interface system. 16CH 5M video input and 8 audio input. plus 8CH 5MP IP input. One HDMI 1080P to 4K video output and 1920x1024 VGA output. The DVR system has continue, motion detect, time schedule record modes. Remote viewing on your Windows PC, Mac PC, most popular cell phone like iPhone, Android, etc over internet. USB backup or PC backup over your network.

DVR Feature

• Compatible with TVI, AHD and Analog cameras
• Compatible with CIB 5MP CIB IP HD Cameras
• Supports Up to 16CH 5MP HD Cameras
• Plus 8CH 1080P 5MP IP Cameras, total 24 Cameras
• 4K HD Video output
• Smart Search playback
• Video Spot Management with HDMI and VGA output.
• 2x internal Hard drive bays up to 16TB
• eSATA Support another external CIB HDD Enclose up to 32TB

IntekBox Main Feature:

1. Supports HD 4K to 1080P HD TVI/AHD/CVI Coax Camera.
2. Graph User Interface.
3. Text Overlay
4. Smart Abnormal Email Alert in Real Time
5. PC Central Management
6. Cash Drawer Safety
7. Plug and Play, easy to install

Features

1. 16CH HD-TVI/IP 5MP Security Surveillance System DVR. All 16 HD-TVI channels in High Resolution 5MP Recording and Display and with 5MP Video Playback. One 1080P to 4K HDMI Output Port, 1920X1080 VGA Output, 8ch Audio Inputs and one Audio Output.

2. This 5MP DVR system is very easy to install, just plug in and play, same as traditional CCTV Analog system. This DVR System fully compatible with all of your existing CCTV analog cameras and cables, so it is very easy to upgrade your existing CCTV system to a new HD 5MP system. No more network infrastructure and setup harass.

3.Free mobile App and PC client software. Smart P2P Auto Connection with QR Code Scan, no router or DDNS set up is required. Support iPhone, Android and PC, Mac Access live view via Internet using browser.

4. This is Exclusive DVR System by USA Security Store with CIB brand name. it is Guaranteed three years US Support and US Warranty offered exclusively by USA Security Store if you purchase from USA Security Store Directly. We are never authority other sellers to sell this product. Please report to Amazon or USA Security Store if you received products without CIB logo.

5. If you need to add 4MP IP Camera, please contact with us.

Package Content

• One 8CH True HD-TVI 5MP DVR
• plus 4CH 5MP IP Input
• One IntekBox POS HD 4K Text Inserter Coax Analog Camera Solution
• USB Mouse
• Smart P2P Auto Connection with QR Code Scan
• Smart Phone APP and PC Client Software
• CD with User Manual and Installation Guide
• Hard disk drive is not included
• Three Year Full Warranty in USA.

DVR Feature

• Video Input : 16CH Video Input
• IP Input: 8CH 5MP IP
• Video Resolution : 5MP True HD High Resolution
• Recording Mode: Manual, Schedule, Event
• Search Mode: Date/time, Event, Motion
• Playback: Fast forward / backward (2x,4x,8x,16x), Slow forward(1/2x,1/4x,1/8x,1/16x) Step forward
• Monitoring: Webviewer, Mobile Viewer, CMS
• Smart P2P Auto Connection with QR Code Scan
• Free mobile App and PC client software
• Supported OS: Windows; Mac OS
• Mobile Device : iPhone, iPad, Android Smart Phone
• Protocol Support: TCP/IP, UDP/IP, UDP
• Internal HDD: 2 SATA HDD capability up to 2x4TB
• USB Backup: 2xUSB2.0
• Output: VGA 1080P and HDMI 1080P to 4K
• Alarm trigger send images to designated e-mail
• Advanced motion detection function
• Audio: 16CH RCA in/ 1CH RCA out
• PTZ Control through RS-485
• Support PELCO-D PELCO-P protocol for PTZ Control
• Power Input: 12V DC
• Dimensions (WxHxD): 200x50x150mm, Weight: 2.5kg
