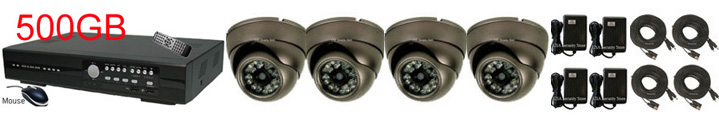

PACKAGE CONTENTS
Mode: R401H60W500G8403
CCTV 4 Cameras Stand Alone DVR Package
4 Cameras Stand Alone DVR Network Remote Viewing
Supports Windows IE and Mac OS Remote Viewing over Internet
500GB Hard Disk Has Been Installed Inside
Real Time Display and Recording in 120 Frame Per Second
High Resolution 1600x1200 VGA Output and TV Output
USB Back Up and Network Remote Back up
4 x Sony CCD 24LEDs Day / Night Infrared Weather Proof Bullet Color Cameras
4 x 65FT Video Cables with Power Wire and Power Supply
- One 4 Camera Stand Alone Network DVR w/500GB Hard Disk Driver Built in
- Four Vandal Proof Day Night Vision Sony CCD Color Dome Camera 480TVL
- Four Indoor/Outdoor Wall mount or Celling Mount
- Four DC 12V 500mA Power Adapter
- Four 65ft Video Cable with Power Wire
- If you need longer cable, please email to us
- Video Viewer and EagleEyes Application
- One Year Warrant Guaranteed
Feature
- H.264 Compression crystal clear images with real time performance
- Support USB back up network remote recording & backup
- Remote surveillance with 5 users simultaneously
- Support manual / timer / motion / alarm / remote recording functions
- Support 4 audio-in, 1 audio-out to record sounds
- System auto recovery after power reconnected
- Watermark function ensures authentication of the recorded images
- Support TCP/IP, PPPoE, DHCP and DDNS network connection
- Easy to install and connects to your existing TV, VCR, DVR Quad Process
Products Specification
- Video System: NTSC / PAL (switchable)
- Video Compression Format: H.264
- Video Input: 4 Channels. Composite video signal 1 Vp-p 75O BNC
- Video Out: 4 Channels. Composite video signal 1 Vp -p 75O BNC
- Maximum Recording Rate: 120 Frame Per Second
- Adjustable Recording Speed: 120, 60, 30 Frame
- Image Quality Setting: Best, High, Normal and Basic
- Hard Disk Storage: SATA type, capacity over 1000GB
- Recording Mode: Manual / Timer / Motion / Alarm / Remote
- Audio I/O : 4 audio input, 1 audio output (Mono)
- Motion Detection Area: 16 × 12 grids per camera for all channels
- Motion Detect Sensitivity: 4 adjustable Level
- Pre-alarm Recording: Yes (8MB)
- Backup Device: Network remote backup
- Web Interface: Support licensed software AP and IE browser Mac Firefox
- Remote Alarm Notification: E-mail images, upload images to FTP site’s specific account
- Network Connection: Support TCP/IP, PPPoE, DHCP and DDNS function
- PTZ control: Support PELCO-D protocol
- VGA: High Resolution 1600x1200
- Alarm I/O: 4 inputs, 1 output
- Digital Zoom: 2X digital zoom (live mode) Key Lock Yes
- Key Lock: Yes
- Video Loss Detection: Yes
- Camera Title: Support up to 6 letters
- Video Adjustable: Hue / Color / Contrast / Brightness
- Date Display Format: YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off
- Power Source: DC 19V
- Power Consumption: <42 W
- Operating Temperature: 10" ~ 40" (50"~104")
- Dimensions (mm): 343mm (W) × 59mm (H) × 223mm (D)
- Weight: 2Kg
|
Camera Features
- Weatherproof and Vandaproof Dome, Indoor and Outdoor
- 24 infra-red LEDs see in the dark up to 65ft
- Clear resolution 480 TV Lines video display
- Powerful Sony CCD color image sensor chip
- Easy to install and connects to your existing TV, VCR, DVR Quad Process
- Operates in freezing temperatures down to 4°F(-20°C)
- Model CUC8403
Camera Specification
| Pickup device: |
Sony Color CCD |
| Number of pixels: |
NTSC:510(H) X 492(V) |
| System of signal: |
NTSC |
| Horizontal resolution: |
480TV Line |
| Minium illumination: |
0.0Lux/F1.2 |
| Lens: |
3.6mm |
| Infrared |
24 LEDs 65ft |
| Backlight compensation: |
ON/OFF(Optional) |
| Electronic shutter: |
1/50(1/60) «1/100,000ses |
| White balance: |
AUTO |
| S/N ratio: |
>48dB |
| Gamma correction: |
>0.45 |
| Operation temperature: |
-20«50 |
| Sync.system: |
Internal |
| Video output: |
1.2Vp-p/75 |
| Power supply: |
DC12V |
| Dimensions(mm): |
55(D)x75(H) |
| Weight(g): |
320 |
|
|
|
 |
| Manufacturer
|
CIB Security
|
|
Unit
|
|
|
SKU
|
R401M60W500G8403 |
|
