Brand New Item
CCTV 8 Cameras Stand Alone DVR Package
8 Cameras Professional Stand Alone DVR
Network Remote Access Cameras over Internet on Windows and Mac OS
500GB Hard Disk Has Been Installed Inside
Real Time Display / Recording in 240 Frame Per Second
8 Sharp CCD High Resolution Infrared Day / Night Bullet Cameras
High Resolution 1600x1200 VGA LCD Monitor and TV Output
Remote Control and USB back up
4 Audio Input Record and one Audio output
8 x 65FT Video Cables with Power Wire
One 9 CH Power Distributer Box
Model R801N60W500G8653P

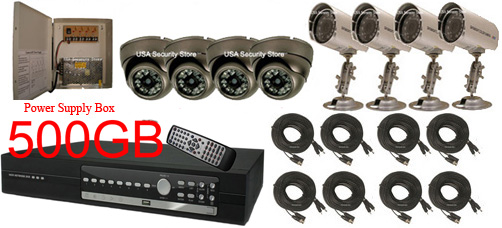

PACKAGE CONTENTS

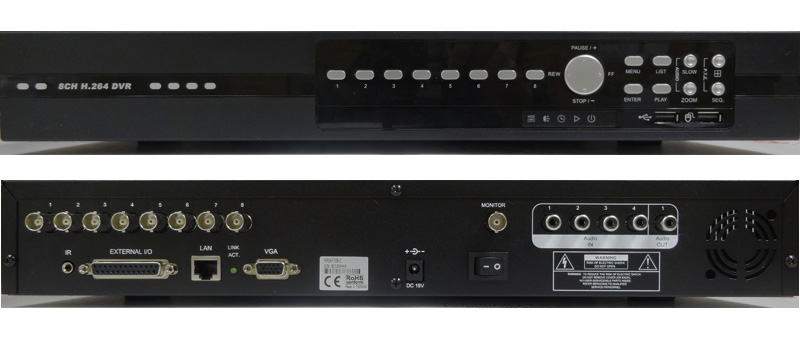

- 8 CH Stand Alone DVR Network Machine
- Real Time Display and Recording in 240FPS
- IR Remote Controller
- 8 Sharp CCD Day Night Infrared Bullet Cameras
- 8x65FT cable with Power Wire
- If you need more cable, please send email to us
- 9 CH Power Supply Distributor Box
- PC Clinet Software for Remote Access Camera over Internet
- 500GB Hard disk driver is included.
- One Year Full Warranty in USA
Feature
- 8CH Camera Real Time Digital Video Recorder
- Real time performance with 240 IPS
- Easy backup with USB FLASH DRIVE
- Easy Backup with Network
- Support network remote recording & backup
- Support manual,timer,motion,alarm,remote recording functions

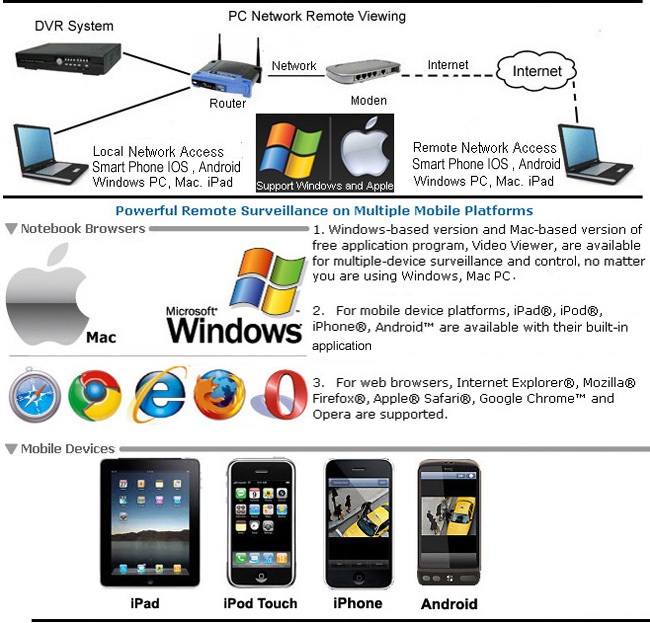

- Remote Viewing via internet on Windows and Mac OS
- Remote surveillance on mobile phone via 3G & GPRS
- Alarm trigger send images to designated e-mail and FTP address
- Advanced motion detection function
- Web surveillance supports 5 viewers simultaneously
- IR remote control of the system and PTZ through RS-485
- Support PELCO-D protocol for PTZ Control
- Support static IP, PPPOE, and DHCP with DDNS function
- Record audio with 4ch in and 2ch mono audio out
- System auto recovery after power reconnected
- Watermark function ensures authentication of the recorded images
- Easy to install and connects to your existing TV, VCR, DVR Quad Process
- One Year Warranty, Service in San Jose, California
Products Specification
- Video System: NTSC / PAL (switchable)
- Video Compression Format: H.264
- Video Input: 8 Channels. Composite video signal 1 Vp-p 75O BNC
- Video Out: 1 Channels. Composite video signal 1 Vp-p 75O BNC
- VGA Out Yes 1600x1200 Resolution
- Maximum Recording Rate: CIF: 352 × 240 pixels with 240 IPS
- Frame: 720 × 480 pixels with 120 IPS
- Adjustable Recording Speed Frame: 30, 15, 7, 3 IPS
- CIF: 120, 60,30, 15 IPS
- Image Quality Setting: Best, High, Normal and Basic
- Hard Disk Storage: SATA type, supported SATA*2, capacity over 2000GB
- Recording Mode: Manual / Timer / Motion / Alarm / Remote
- Audio I/O : 4 audio input, 1 audio output (Mono)
- Motion Detection Area: 16 × 12 grids per camera for all channels
- Motion Detect Sensitivity: 4 adjustable Level
- Pre-alarm Recording: Yes (8MB)
- Backup Device: Network remote backup
- Web Interface: Windows IE, Mac FireFox, QuickTime Player
- Remote Alarm Notification: E-mail images, upload images to FTP site’s specific account
- Network Connection: Support TCP/IP, PPPoE, DHCP and DDNS function
- PTZ control: Support PELCO-D protocol
- Remoter Control Yes
- Alarm I/O: 8 inputs, 1 output
- Digital Zoom: 2X digital zoom (live mode) Key Lock Yes
- Key Lock: Yes
- Video Loss Detection: Yes
- Camera Title: Support up to 6 letters
- Video Adjustable: Hue / Color / Contrast / Brightness
- Date Display Format: YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off
- Power Source: DC 19V
- Power Consumption: <42 W
- Operating Temperature: 10" ~ 40" (50"~104")
- Dimensions (mm): 343mm (W) × 59mm (H) × 223mm (D)
- Weight: 5Kg
|
Camera Features
- Weatherproof and Vandaproof
- 24 infra-red LEDs see in the dark up to 65ft
- Clear resolution 420 TV Lines video display
- Powerful 1/3” Sharp CCD color image sensor chip
- Easy to install and connects to your existing TV, VCR, DVR Quad Process
- Operates in freezing temperatures down to 4°F(-20°C)
- Model CUC8653
Camera Specification
| Pickup device: |
1/3 Sharp Color CCD |
| Number of pixels: |
NTSC:510(H) X 492(V) |
| System of signal: |
NTSC |
| Horizontal resolution: |
420TV Line |
| Minium illumination: |
0.0Lux/F1.2 |
| Lens: |
3.6mm |
| Infrared |
24 LEDs 65ft |
| Backlight compensation: |
ON/OFF(Optional) |
| Electronic shutter: |
1/50(1/60) «1/100,000ses |
| White balance: |
AUTO |
| S/N ratio: |
>48dB |
| Gamma correction: |
>0.45 |
| Operation temperature: |
-20«50 |
| Sync.system: |
Internal |
| Video output: |
1.2Vp-p/75 |
| Power supply: |
DC12V |
| Dimensions(mm): |
55(D)x75(H) |
| Weight(g): |
320 |
|
|
 |
| Manufacturer
|
CIB Security
|
|
Unit
|
|
|
SKU
|
R801N60W500G8653P |
|
