CCTV H.264 16 Cameras Stand Alone DVR Package

H.264 16 Cameras Professional Stand Alone DVR
Network Remote Access Cameras over Internet on Windows and Mac OS
1000GB Hard Disk Has Been Installed Inside
Real Time Display / Recording in 480 Frame Per Second
8 Sharp CCD High Resolution Infrared Day / Night Bullet Cameras
8 Sharp CCD High Resolution Infrared Day / Night Dome Cameras
Hight Resolution 1600x1200 VGA LCD Monitor and TV Output
Remote Control and USB back up
4 Audio Input Record and one Audio output
16 x 65FT Video Cables with Power Wire
One 16 CH Power Distributer Box

Model R1601H60W1000G8653-8401P

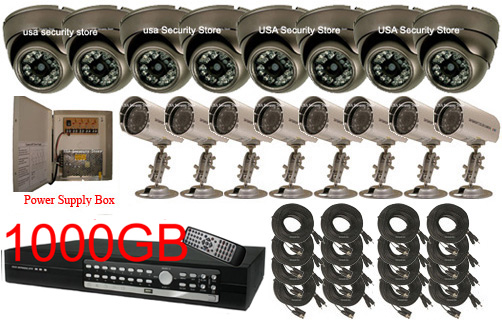

PACKAGE CONTENTS

• H.264 16 CH Stand Alone DVR Network Machine
• Real Time Display and Recording in 480FPS

• IR Remote Controller
• 8 Sharp CCD Day Night Infrared Bullet Cameras
• 8 Sharp CCD Day Night Infrared Dome Cameras
• 16x65FT cable with Power Wire
• If you need longer cable, please send email to us

• 16 CH Power Supply Distributor Box

• PC Clinet Software for Remote Access Camera over Internet

• 1000GB Hard disk driver is included.
• One Year Full Warranty in USA


Feature
• H.264 16CH Camera Real Time Digital Video Recorder
• Real time performance with 480 IPS
• Easy backup with USB FLASH DRIVE
• Easy Backup with Network

• Support network remote recording & backup
• Support manual,timer,motion,alarm,remote recording functions
• Remote Viewing via internet on Windows and Mac OS

• Remote surveillance on mobile phone via 3G & GPRS
• Alarm trigger send images to designated e-mail and FTP address
• Advanced motion detection function
• Web surveillance supports 5 viewers simultaneously
• IR remote control of the system and PTZ through RS-485
• Support PELCO-D protocol for PTZ Control
• Support static IP, PPPOE, and DHCP with DDNS function
• Record audio with 4ch in and 1ch mono audio out
• System auto recovery after power reconnected
• Watermark function ensures authentication of the recorded images
• Easy to install and connects to your existing TV, VCR, DVR Quad Process
• One Year Warranty, Service in San Jose, California

DVR Products Specification

• Video System: NTSC / PAL (switchable)
• Video Compression Format: H.264

• Video Input: 16 Channels. Composite video signal 1 Vp-p 75O BNC
• Video Out: 1 Channels. Composite video signal 1 Vp-p 75O BNC
• VGA Out Yes 1600x1200 Resolution

• Maximum Recording Rate: CIF: 352 × 240 pixels with 480 IPS
• Frame: 720 × 480 pixels with 240 IPS
• Adjustable Recording Speed Frame: 30, 15, 7, 3 IPS

• CIF: 120, 60,30, 15 IPS
• Image Quality Setting: Best, High, Normal and Basic
• Hard Disk Storage: SATA type, supported SATA*2, capacity over 2000GB
• Recording Mode: Manual / Timer / Motion / Alarm / Remote
• Audio I/O : 4 audio input, 1 audio output (Mono)
• Motion Detection Area: 16 × 12 grids per camera for all channels
• Motion Detect Sensitivity: 4 adjustable Level
• Pre-alarm Recording: Yes (8MB)
• Backup Device: USB and Network remote backup
• Web Interface: Windows IE, Mac FireFox, QuickTime Player

• Remote Alarm Notification: E-mail images, upload images to FTP site’s specific account
• Network Connection: Support TCP/IP, PPPoE, DHCP and DDNS function
• PTZ control: Support PELCO-D protocol
• Remoter Control Yes

• Alarm I/O: 8 inputs, 1 output
• Digital Zoom: 2X digital zoom (live mode) Key Lock Yes
• Key Lock: Yes
• Video Loss Detection: Yes
• Camera Title: Support up to 6 letters
• Video Adjustable: Hue / Color / Contrast / Brightness
• Date Display Format: YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off
• Power Source: DC 19V
• Power Consumption: <42 W
• Operating Temperature: 10" ~ 40" (50"~104")
• Dimensions (mm): 343mm (W) × 59mm (H) × 223mm (D)
• Weight: 5Kg

Camera Features

• Weatherproof and Vandaproof
• 24 infra-red LEDs see in the dark up to 65ft
• Clear resolution 420 TV Lines video display
• Powerful 1/3” Sharp CCD color image sensor chip
• Easy to install and connects to your existing TV, VCR, DVR Quad Process
• Operates in freezing temperatures down to 4°F(-20°C)
• Model CUC8653

Camera Features

• Indoor IR Dome Camera

• Easy Wall Mount and Celling Mount

• 24 infra-red LEDs see in the dark up to 65ft
• Clear resolution 420 TV Lines video display
• Powerful 1/3” Sharp CCD color image sensor chip
• Easy to install and connects to your existing TV, VCR, DVR Quad Process
• Operates in freezing temperatures down to 4°F(-20°C)
• Model CUC8401
