Model: USS808W8753P

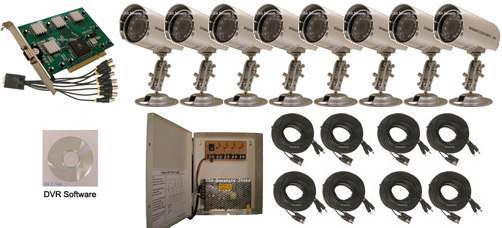

PACKAGE CONTENTS
• One 8 Channel 240/240FPS Read Time DVR Card
• Eight Night Vision Sony CCD Color Camera 460TVL
• Eight Indoor/Outdoor Bracket
• One Nine Outputs DC 12V 500mA Power Box
• Eight 65ft Video Cable with power wire
• One Year Warranty

8 CH 240/240FPS Real Time PC Based DVR CARD

8PCS Philip Chip 7130, Guaranty 240FPS
Real Time Display and Recording
Life Time Software Upgrade Free
Model USS808

PC Requirements:

• Intel Chipset Motherboard 845 Chipset or Higher
• Intel Pentium 4 or Higer
• ATI, Nvidia or Intel VGA card
• 512MB Memory
• 80GB Hard Disk Driver(Mininum)

SPECIFICATION
• 8 Channel Video
• Each Camera 30FPS 240 FPS total in display and recording
• Triplex operation for Playback/Record/Network in same time
• Support H.264 and MPEG4 Compression
• Support up to 4 Cards, Total 16 Channels
• 640 X 480 high resolution
• Timer/ Motion/ Sensor/ Scheduled Recording
• Live Playback in real time by Day, Date and Time
• Perfect motion detection function
• Easy Video Color Brightness and Contrasts controls
• Pan / Tilt / Zoom Control
• Multi user and level protection Management
• Video/audio Data Backup Management
• Manual Back-up to CD or DVD media.
• Automatically email a photo to user when a motion is detected
• Build in Web Server
• IE Remote Viewing over the internet with internet explorer
• Remote playback, Recording, and PTZ Control
• Support Windows 2000 / XP / Vista

24LEDs Infrared Color Camera 65FT Range Waterproof
Model 8753

FEATURES
• Brand New
• Weatherproof and Vandaproof
• Clear resolution 460 TV Lines video display
• Powerful 1/3” Sony CCD color image sensor chip
• 24 infra-red LEDs see in the dark up to 50-65ft
• Easy to install and connects to your existing TV, VCR, DVR Quad Process
• Operates in freezing temperatures down to 4°F(-20°C)

SPECIFICATION
• 1/3 Sony Color CCD
• NTSC:510(H) X 492(V)
• 460TV Line
• 0.0Lux/F1.2
• 3.6mm Lens
• 24 LEDs 50-65ft
• Backlight compensation: ON/OFF(Optional)
• Electronic shutter: 1/50-1/60) «1/100,000ses
• White balance: AUTO
• S/N ratio: >48dB
• Gamma correction: >0.45
• Operation temperature:-20«50
• Video output: 1.2Vp-p/75
• Power supply: DC12V
• Dimensions(mm): 55(D)x75(H)
• Weight(g): 320g
